Making of interior, 1st floor

A tutorial by Romi Valentino.

A foreword from Evermotion: Romi Valentino, also known as Romi3D prepared "Making of interior, 1str floor" tutorial for Evermotion users. This work was awarded with frontpage publication. You can see the whole gallery on Evermotion Forum: Interior, 1st floor by Romi3D. We asked Romi for sharing his approach to this scene and he agreed. So... enjoy this tutorial! :)
One of the final renders

Hi all!
This is my latest "making of". I wanna thank for Evermotion for giving me a chance to share it with you. Alright then, here we go! The most important for me as a designer and 3d artist is a good concept, I often gather images that resemble the mood of the project I am working on, it is fast and it lets you to better understanding what you are going to do and how is it going to look.

A board of inspirations

A board of inspirations 2

Making this artwork I colaborated with Gaston Carrio. He is one of the top abstract painting artist in Houston. For more info and price about yellow abstract painting that I am using in this bedroom, you can visit this link :http://artbyarchitect.com/art/paintings/abstract-art-transcendent-archetypes-121314/ This painting is protected by copyright and I got a permission from Gaston to use it.

When I decided that I have enough informations and know the style and color that I wanna apply in my work, I started modeling in 3ds max. Before I model any objects I create walls, floor and ceiling, because they have the biggest impact on the overall mood of a scene. I unwrap wall objects, so I can apply textures, add some cracks, wallpaper and put some painting on the wall. You must keep learning and experiment, there is no way you can achieve good results instantly.
Main wall

Ceiling material

Floor material
When the wall and floor were ready, I added some lighting to the scene.
To create a good mood with lighting, you also need to experiment, to find proper intensity, color and position. I use simple V-Ray light, no secrets, no plugins, just a lot of experiments with settings and referencing with images that I gathered before.
V-Ray lights


I also modeled manually the old working desk chair, the old bookshelf and other furniture. Then unwrapped them one by one. Material that I use comes from cgtrextures.com and textureking.com. To make material more realistic you need to learn from real world. Below there is a small portion of objects that I created.
Modeling and texturing

More texturing...

Modeling and texturing

I made a bed from Marvelous Cloth Designer manual and used hair and fur modifier

This are the settings of hair and fur



As I emphasised in some of my other tutorials, I don't often render many elements, I only use what I need for compositing. Of course, that depends of artists approach, just don't forget output as a TIF for more depth of color.





Postproccesing
I use Photoshop, Magic Bullet and After Effects as my primary tools for postproduction. In PS I mix and blend all render elements with soft light filter. Before that, make sure that your RGB image is set to 16 bit and apply gamma exposure (image>adjust>exposure-turn gamma correction to 0,8 or 1.00 depend of your needs). Then play with brightness and contrast.
Exposure control
Working in Photoshop


I blend GI, shadows and total lighting render elements with soft light filter, then I turn down the opacity (to 16%) to achieve balance of this the element and RGB image.
Soft light and opacity

I applied masking to reflect render element and blend it with softlight, then turned down opacity to 15%.
Masking

If I have zdepth element in my scene, I edit it in After Effects using frischluft plugin. This plugin has a powerful control of iris and depth.
Depth of field


Sometimes I use Magic Bullet suite to lift the gamma in the dark areas. You can learn basics of Magic Bullet hereand color grading here. The last (mybe not important) is adding a lens correction and a black border.
Final touch

Ok, thats all :) Here are the final renders:









Athens Tech Demo Siggraph 2013

In this scene - "Recreation of Athens", presented on Siggraph 2013 you can see 1,62 billion of visible triangles. Pure awesomness by Whiskytree, a VFX comapny that stands behind great visual effects of Elysium:

Making of Small Living Room


Hello everyone, my name is Algimantas Raubiška, (a.k.a. Freak`az) and I would like to explain my workflow with Corona renderer in this “Making Of” Small Living Room.
Introduction:
First of all I’d like to thank Evermotion team for inviting me to prepare this tutorial. The scene was created with the intention to try and explore the possibilities of new Corona renderer that is currently in open alpha test stage. So it was a quick and fun workout. The main idea was to create a bright small living room with some Scandinavian design influences.
Inspiration:
For the inspiration I browsed design blogs and collected references in the “Inspirations” folder. Here are some photos that I checked while working on this project and that caught my attention.
Click on image to enlarge Inspirations.jpg
Inspirations


Scene setup:
The first (important) step in modeling is the basic scene setup which is setting the correct units. To have everything in the scene in proportion. I work in cm, as my main display and system units. I Also change Gamma value to 2,2.
Click on image to enlarge Scene_setup_1.jpg
Scene setup

Modeling:

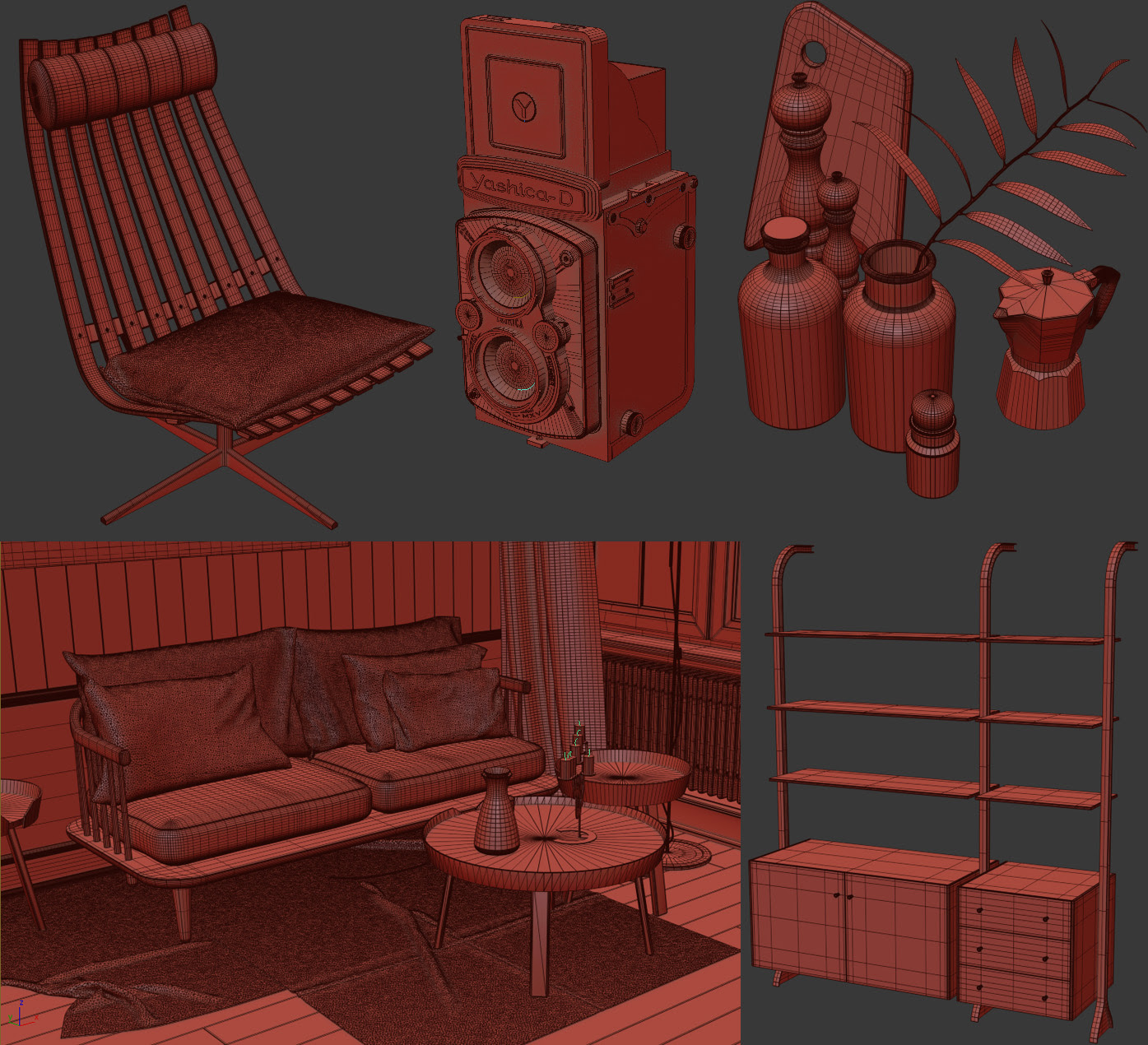

Nothing very special about the modeling process - almost everything in the scene was created with basic poly modeling tools, and all the furniture or accessories were modeled or collected before and were already in my library, so it was basically a drag and drop procedure. Here are some clay renders from the scene.
Click on image to enlarge Perspective_view.jpg
Perspective view 1

Click on image to enlarge Perspective_View_2.jpg
Perspective view 2

Click on image to enlarge Clay_renders_2.jpg
Clay render

Click on image to enlarge Clay_renders.jpg
Clay render 2

Click on image to enlarge Clay_renders_3_new.jpg
Clay render 3

Soft edges

I always soften the edges of furniture with support edges and apply the turbosmooth modifier. Cushions on the chair and the sofa and carpets were created with Marvelous Designer, and for the curtains I used max’s native Cloth modifier.
For the floor and wall planks and kitchen wall tiles I used Floor generator script by cg-source. This is free, useful and easy to use script for creating floor geometry.
Click on image to enlarge Plants.jpg
Plants

Click on image to enlarge Basil_leaves.jpg
Basil leaves

First of all I created a high poly basil leaf from a plane and added noise and bend modifiers for the leaves to look more natural. Then I used the GrowFx plugin to generate the plant. For the main stems (1st path in GrowFx) I added a distributor, assigned cylinder mesh to it with Noise, vector and random direction modifiers.
Click on image to enlarge GFX1.jpg
GrowFX 1

After the stem was created I added four more paths in GrowFx, assigned the path position distributor to it with different number of positions and I added an “”instanced geometry mesh” in mesh parameters. For the mesh I used the leaves I created before and adjusted the custom scale of it.
Click on image to enlarge GFX2.jpg
GrowFX 2

Here’s the viewport with plant with all the paths applied. After that I added a simple leaf texture the plant was done. The fun of working with GrowFx is the fact that it allows for making a lot of variations in a fast way. I easily adjusted the stem count and variation of my plant with a single click by changing the seed parameter. This way I got 6 variations of the same plant in one minute.
Click on image to enlarge GFX3.jpg
GrowFX 3

Click on image to enlarge Leaves_Texture.jpg
Leaves

The fur on the chair was created with hair and fur modifier. The base mesh was dropped on a chair, using cloth modifier. Then I slightly stylized hair, adjusted clumping, frizz and kink parameters.
Click on image to enlarge Fur_Settings.jpg
Fur settings

Materials:
Shading is the hardest part of the process as I often struggle to create realistic materials. I like the materials with uneven reflections so I often use bitmaps with dirt in the reflection and glossiness slots to add subtle imperfections to the material. I also use multilayered maps to avoid repetitiveness. When creating materials in Corona I use the same principles as in V-Ray.
Click on image to enlarge Material_Curtain_900_00358.jpg
Curtain material. For the curtains I used basic material with transluency effect, with fraction of 0,17. I also used falloff map to make the curtains less transparent on the bend sides and more transparent on the front.

Click on image to enlarge Material_Dark_Wood_900_00357.jpg
Dark wood material for the sideboards of kitchen cabinet.

In diffuse slot I used a mix of two different grey colors, I used light grayscale bitmap of a wood texture for mix amount. I used the same texture for reflection map. For the glossiness I used a composite map consisting of few different dirty textures. For the bump I used mix of the wood texture and a dirt map. That’s the basic workflow I use for the most of the materials.
Click on image to enlarge Material_Painting_900_00356.jpg
Painting material settings

Click on image to enlarge Material_Steel_900_00359.jpg
Steel tabletop in the kitchen. I used blend of two materials – shiny steel and black less reflective metal. For the reflections and glossiness I used composite maps or mix maps and noise map for the bump to add a slightly bent look.

Click on image to enlarge Material_Wall_Paint.jpg
Wallpaint material. I didn’t want a perfectly even painted wall surfaces so, to make it imperfect I used mix of two colors in diffuse with dirt map in the mix amount.

Click on image to enlarge Materials_Plastic_Shiny_900_00361.jpg
Shiny plastic for the kitchen cabinet doors. Nothing special here, just a dirt map for imperfect reflections, fingerprint texture in the glossiness and noise in a bump map for slightly bent look.

Lighting
I tried the simpliest scenario possible for the lighting. I wanted a bright lit room so I used just Corona sun and sky for scene illumination. The kitchen zone was a bit dark so I added couple of spherical Corona lights in the lamps. I reduced sun intensity to make it less visible and increased sun size for softer shadows. The sky is basically at default settings with just a minor adjustments in Overcast setting.
Click on image to enlarge Light_Settings.jpg
Light settings

After light setup I made a few quick test renders. And I completely fell in love with Corona renderer as you can adjust the lighting of the image while rendering. You can simply increase the lightness of the image by adjusting “exposure compensation” and adjust the “highlight compression” in the Post processing tab of Corona renderer settings. I also adjusted the white balance to make renders have a bit blueish tint.
Light test 1

Click on image to enlarge Light_Test_2.jpg
Light test 2

Light test 3

Rendering
Nothing much to talk about here because Corona has simple settings. The default settings should give you a fairly good result. The simplicity is genius. No more headache about color mapping, and lots of tweaking of bunch of settings. I just switched secondary solver to HD Cache for faster rendering and increased it's PT samples to 1024 to increase sample accuracy in the Sampling increased path tracing samples up to 32 and increased max. sample intensity to 200.

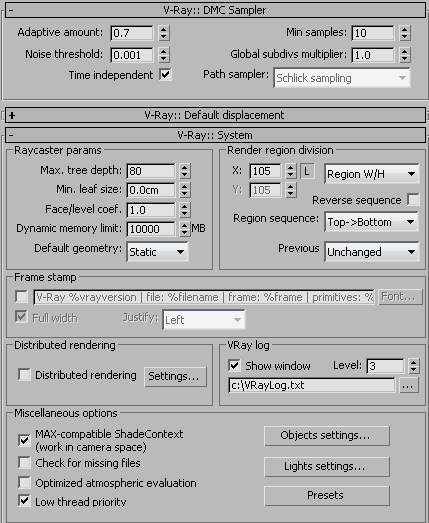

Render settings

I rendered my images in progressive mode and stopped the renderer whenever it looked clean enough for my taste. The render times were about 4-6 hours per image (2000x1500 px resolution).
Post production
Photoshop was the main tool for postprocessing with the Magic Bullet Photolooks plugin, but I wasn’t bothering to save the *.psd files so I’ll try to recreate the basic workflow which is indeed very simple and quick. Here’s a Raw vs Post comparison.
Click on image to enlarge RAW_vs_Post_900_0355.jpg
RAW vs POST

Renders were saved as 32 bit .exr and the first steps in photoshop was addind Diffusion, chromatic aberration, vignette and Anamorphic flare in magic bullet photolooks.
Click on image to enlarge Magic_bullets_settings.jpg
Magic bullet settings

I usually duplicate the main image twice and change the blend mode to overlay with opacity of about 30-40%. On the second copy I change the blend mode to screen and again change the opacity of the layer to whatever it looks good to my eyes (about 20-30%). Later I add the curves and color balance adjustment layers. Finaly I add adjustment layer with gradient map called “Transparent Rainbow”. Change the opacity to 2% and blending mode to Overlay to give the image a very slight crossprocessed effect.
Click on image to enlarge Photoshop_settings_900_00360.jpg
Photoshop settings

Conclusion
This is the basic workflow. This project was my first baby steps in Corona and I hope that this “making of” will be helpful for existing and future Corona community. Thank you for reading and Good luck!
Final renders
Final render

Final render

Final render

Click on image to enlarge final_4.jpg
Final render

Click on image to enlarge final_5.jpg
Final render
